LED Video Walls front service fixed installation solutions.

Slim video wall , fixed installation directly on the wall without any supporting frame

Slim Video Wall P1.9 P2.6 P3.1 P3.9

New design of slim line video wall 1.6" (42mm) thickness only is great solution for fixed installation directly on the wall without any supporting frames . Easy and fast assemble , totally front service using a magnetic tool to remove modules from a panel (cabinet).
Basic tech spec:
Available pitch: P1.9 , P2.6 , P3.1 , P3.9
Panel sizes : W39.4"xH9.8"XD1.6" or W29.5"xH9.8"XD1.6" (W1000xH250xD42mm or W750xH250xD42mm)
Ready solution for screen with 90 degree angle.
Fixed installation only.
Totally front service design with magnetic pull out modules toll.
Indoor use only.
Perfect image quality
Super Lightweight aluminum cabinet
Vivid image quality processing 16bit , and high gray level
High contrast and refresh rate
No ghost problem
Seamless splicing display ( no gap between cabinets )
Easy and fast installation
Low working temperature
Noiseless ( without fan )

Control system Nova Star
Optional Video processors is available for image scaling, color, contrast, brightness, pic and pic mode , 8 media inputs.

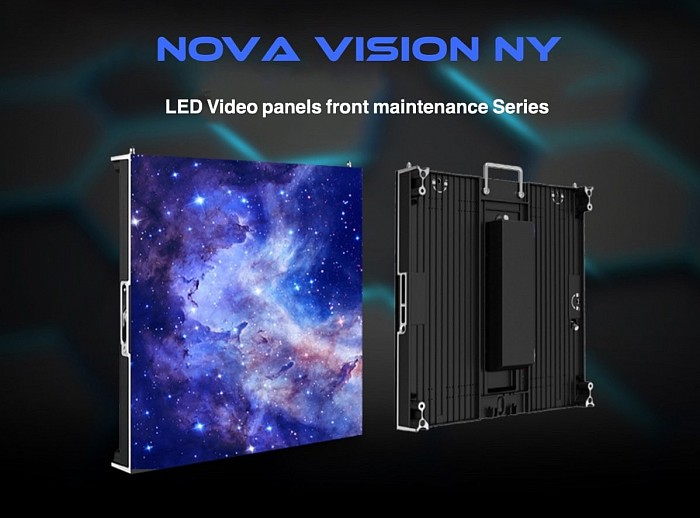

Front maintenance LED Video Wall

Front service LED video wall , fixed installation

P2.5, P3.91mm , P5.2mm , P6.25mm

Front maintenance LED video wall specially design for installation directly to the wall , and totally accessible for service and installation from front side of the screen.

Special Magnetic tool designed for easy remove the modules from the cabinet without any screws.

LED screen has following superiority:

  1. Super Lightweight aluminum cabinet
  2. Vivid image quality processing 16bit , and high gray level
  3. High contrast and refresh rate
  4. No ghost problem
  5. Seamless splicing display ( no gap between cabinets )
  6. Easy and fast installation
  7. Low working temperature
  8. Noiseless ( without fan )

Magnetic modules removal toll
Totally front service magnetic cabinet with magnetic modules LED video display

-------------------NEW------------------

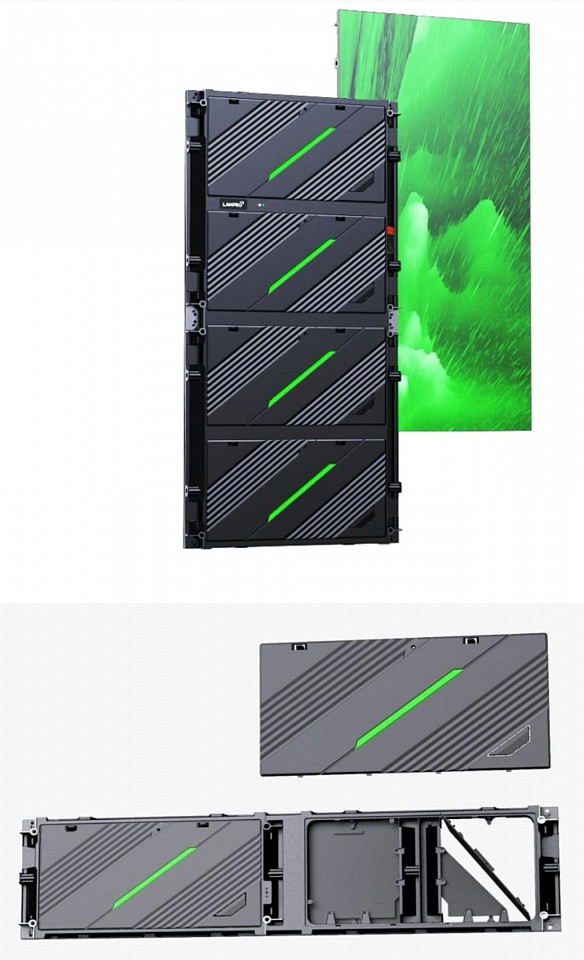

FRONT SERVICE Die-cast Aluminum Rental/Fix installation cabinet.



LED Video display has an outstanding performance with the following features:
1.  640x480 die-casting cabinet to keep high precision. Convenient FRONT SERVICE Design( Led Modules, Power, Receiver card can all  remove from FRONT )
2.    Ultra light &thin, only 8kg/cabinet.
3.    Special design for one man operation.
4.    Cabinet of ground and side protection.
5.    Hig
h refresh rate  without Fuzzy under low gray.

6.    4:3  Ratio
7.    Fanless design
8.    CE,EMC Approval

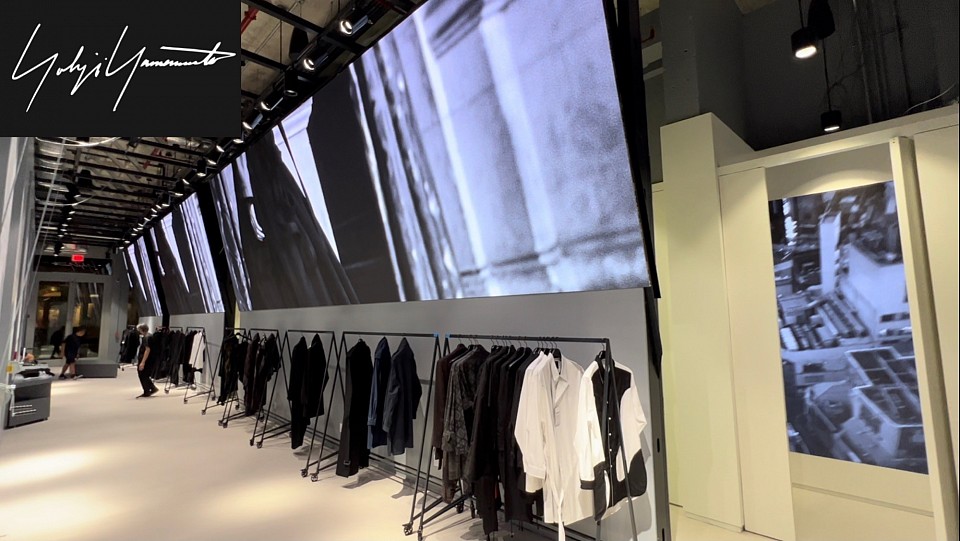

Now it is standing out in the shopping mall like a star, and thousands of people’s attention is attracted everyday. Small pixel LED screen is very suitable for all kinds of shopping stores, AND SPECIALLY FOR WALL FIX Usage, and there is no doubt this can be a best choice.



P2.5 SMD2121 indoor led display , Front Service Die-cast Aluminum cabinet,32scan , 1200cd, Seetronic connectors, module 320x160mm, cabinet 640x480mm,
MBI5124IC $749 /cabinet 640x480mm
MBI5153 IC $829/cabinet 640x480mm



P4 SMD2121 indoor led display , Front Service Die-cast Aluminum cabinet,16scan , 1300cd, Seetronic connectors, module 320x160mm, cabinet 640x480mm,
MBI5124IC $529/cabinet 640x480mm


P5 SMD2121 indoor led display , Front Service Die-cast Aluminum cabinet,16scan , 1300cd, Seetronic connectors, module 320x160mm, cabinet 640x480mm,
MBI5124IC $479/cabinet 640x480mm

Front service with magnetic tool
Easy access for service and repair
Strongest magnet on the back of cabinet

Watch similar installation of LED Video Wall P2.5 Magnetic Cabinet with Magnetic Modules

Total Front maintenance fixed installation

Front service LED Video Wall P3.1 / P3.9

Front service fixed installation LED video wall

Front service LED Video Wall P3.1 / P3.9

That type of indoor video wall specially designed to fixed installation directly on the wall by easy assemble process .
Fully front serviceable
Available Pitch size P3.1 and P3.9
Panel sizes options : 500x500x75mm , 500x750x75mm 750x750x75mm
Control system: Nova or LINSN
Video processor optional
