LED Flex Video Display’s Solutions

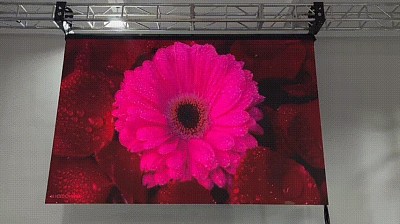

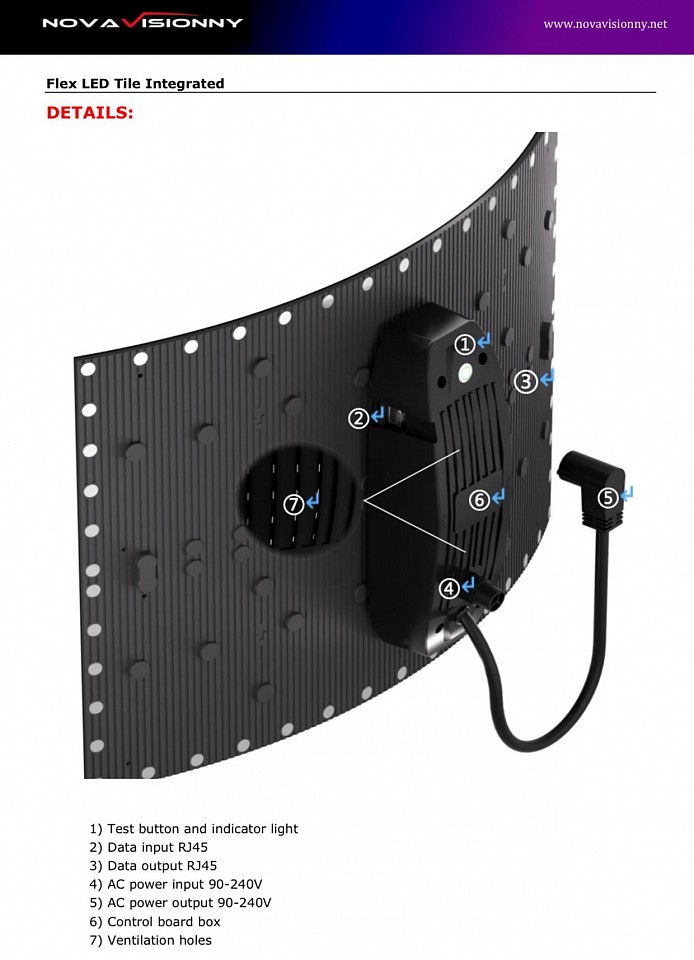

Flex LED Tile Integrated
Flex LED Tile Integrated
Flex LED Tile – an innovative indoor LED display solution designed for seamless curved installations. Each tile features an integrated power supply and receiving card, with strong magnets for secure attachment to metal frames. Easy to install and maintain.
Tile size: W480xH320mm
Input voltage: 90-240V AC
Power consumption Max/Avg: 68/19W
Data input and output: RJ45 socket
FLEX Tiles NX Series
Flex LED Video Display - NX Series : P1.9, P2.6, P2.9, P3.9 new models, and oldest P3.2 ,P4, P6.7 No more available
FLEX LED Video Display - NX Series
- Perfect solution for curve fix installation screens
- Concave and convex shapes
- Available pitch: P1.9, P2.6, P2.9, P3.9
- High quality image 2.8 billions colors
- High refresh rate 1920-3840Hz
- Easy assemble plug and play
- Magnetic modules
- Indoor installation IP20
- DOWNLOAD SPEC CLICK HERE ⬅️
Watch installation video:⬇️
One power supply distribute 20-35 modules
Tech spec of Flex LED modules P1.2, P1.5 , P1.7, P1.9
Spec for P2.6 and p3.9 Flex LED modules
Fine Pitch High Precession LED Flex Video Modules
Fine pixel pitch flex LED video module 9.84”x9.84” (250x250mm) with build in receiving card.Pixel pitch are available P1.25 ,P1.5, P1.7, P1.9, p2.6 , p3.9
The design of that modules can achieve the following goals:
- Fine pixel pitch
- High seamless precision between modules
- Perfect flatness
- Integrated receiving cards one per module
- Quick installation
- One power supply can run 20-35 modules
- 3 years warranty
Underwater magnetic LED Flex video modules P3.8 304x304mm (1’x1’) Min diameter 15.28" (388mm), 4pcs modules
Magnetic flex module , available P1.9, P2.5,P3.2 , module size 250x250mm
Min diameter of 9.84"x9.84" (250*250mm) modules can be 18.82" (478mm) (6pcs modules)
FLEX LED Modules
LED Flex Video Modules
Size 240x120mm :P1.25, P1.56, P1.875 , P2, P2.5 ( high banding radius)
Size 256:128mm : P2 ( high banding radius )
Size 320x160mm : P2.5 ( low banding radius and no rubber frame )
1) 240x120mm 1/24 scan ,
256x128mm and 320x160mm 1/32 scan.
LED type : SMD2121.
2) MBI5124 Driving IC ,1920Hz high refresh.
3) Flexible to design shapes of convex, concave or twisted surfaces (except 320x160mm module)
4) Large viewing angle up to 360 degree,totally meet any viewing requirement
5) Assembling on metal frame , front maintenance
6) Wide application : stores/restaurants /exhibition/shopping mall , creative design etc.
- P1.875 DOWNLOAD SPEC CLICK HERE ⬅️
-
Watch video of P2 flex module below ⬇️
Flex LED modules , Size 240x120mm :P1.25, P1.56, P1.875, P2 , P2.5 , Size 256x128mm : P2. Size 320x160mm : P2.5
Concave and convex flex module display
Flex modules magnetic display
1. Front & Rear serviceability with Magnet design
2. Easily Build Concave & Convex Curves
3. Paired with quality connectors quarantee safe and reliable connection.
Outdoor / indoor flex LED video display
Flex outdoor / indoor led display P4 , P6 are available
Flex Outdoor/ indoor LED Dispaly P4 , P6
Rolling LED Video Display
Rolling LED display
Our rolling LED display is a highly popular choice in the LED display market, providing enhanced commercial value and visibility. It is available in customizable sizes with pixel pitches of P1.25, P1.56, P1.95, P2.6, and P3.9, and meets CE, EMC, ROHS, FCC, LVD, and UKCA certification standards.
