Round LED video displays
Custom sizes round shape LED video displays
Round shape LED video display
Creating a round-shaped display involves employing various techniques tailored to each specific project. For instance, for large round or irregular-shaped displays, we utilize standard modules of different sizes and shapes to construct an initial round shape. Subsequently, we conceal the module edges beneath the border of the round-shaped frame.
Conversely, smaller round-shaped displays are available in predefined sizes, determined by the actual pixel pitch, and are crafted using specially designed curved or round modules.
It's important to note that all our screens are predominantly custom-made, necessitating a comprehensive understanding of the project's specifics prior to manufacturing. To proceed, we require additional information, such as the required display diameter, images of the installation area, viewing distance from the audience to the screen, whether it's for indoor or outdoor use, and the intended purpose (e.g., playing media, graphics, videos, or still images). Collecting these details enables us to provide an accurate cost estimate for your project.
For further information, please don't hesitate to contact us. We are enthusiastic about offering a comprehensive solution and providing technical support tailored to your needs."
Hexagon and round shapes indoor outdoor displays
- For hexagon and round shape displays P2, P4 diameter 20.15” (512mm) click link below :
- Click here to download spec file ⬅️
- P2 inspection video before shipment click here ⬅️
- For round shape P2.5 diameter 52.4” (1330mm) click link below
- Click here to download spec file ⬅️
- For sample video of P2.5 diameter 52.4” (1300mm) click here ⬅️

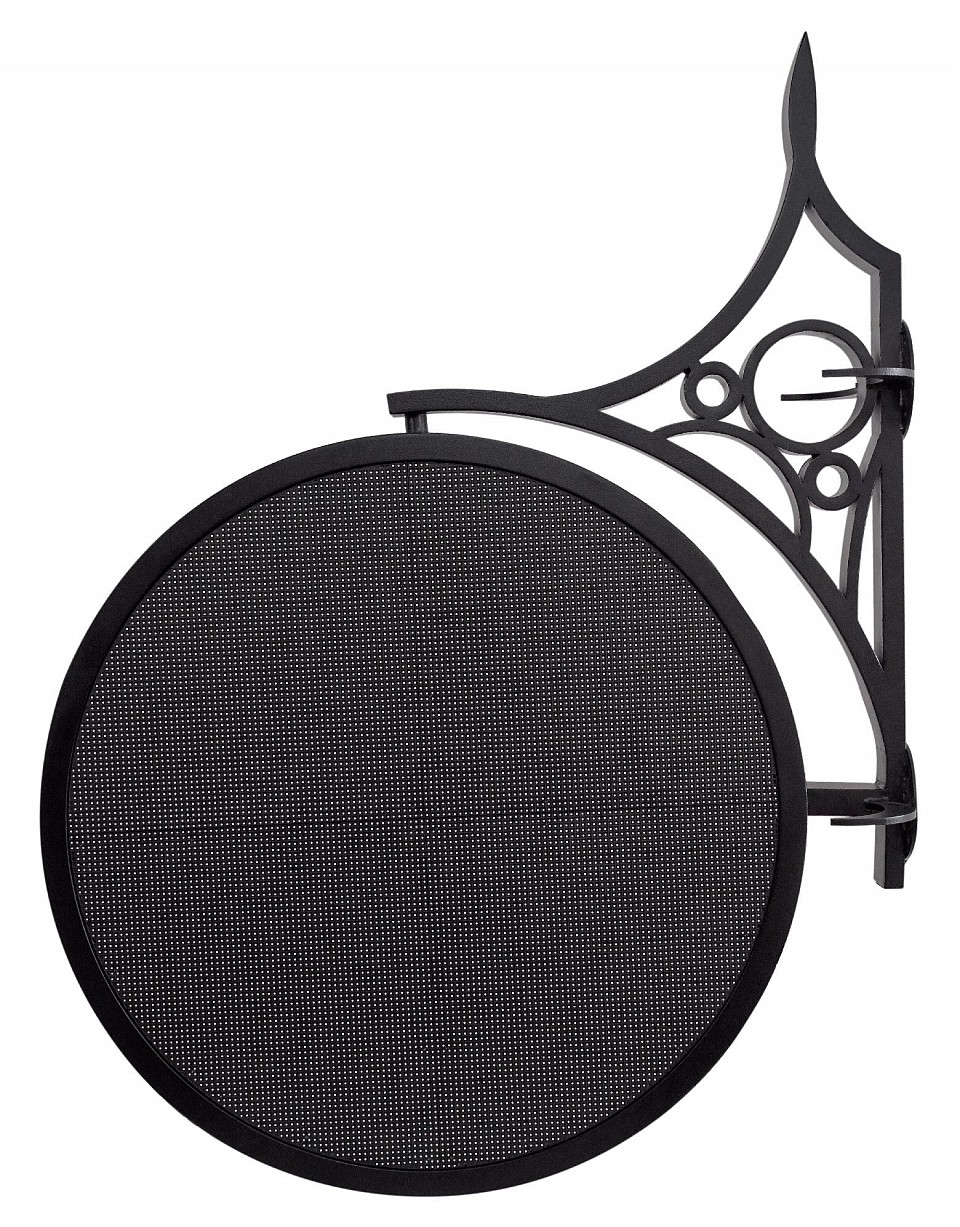

P4.6 outdoor double side round LED display - custom made model (frame + light sensor)
Model has following updates :
- New unique design
- Auto brightness control by light sensor
- Stronger support structure
- 8 supported holes for screws
- Shorter distance of the support arm between wall mounts and LED display , and side designed supported wings makes screen strong against wind.
- Power cord comes out from the back side of the lower support mount and can be connected to electric junction box or pass through the wall and connected behind the wall to electrical outlet.
- Media files uploaded by WiFi from any smart phones or PC , also available network port to connect directly to PC (recommended only for software settings services ).
- Mobil app name : Viplex Handy

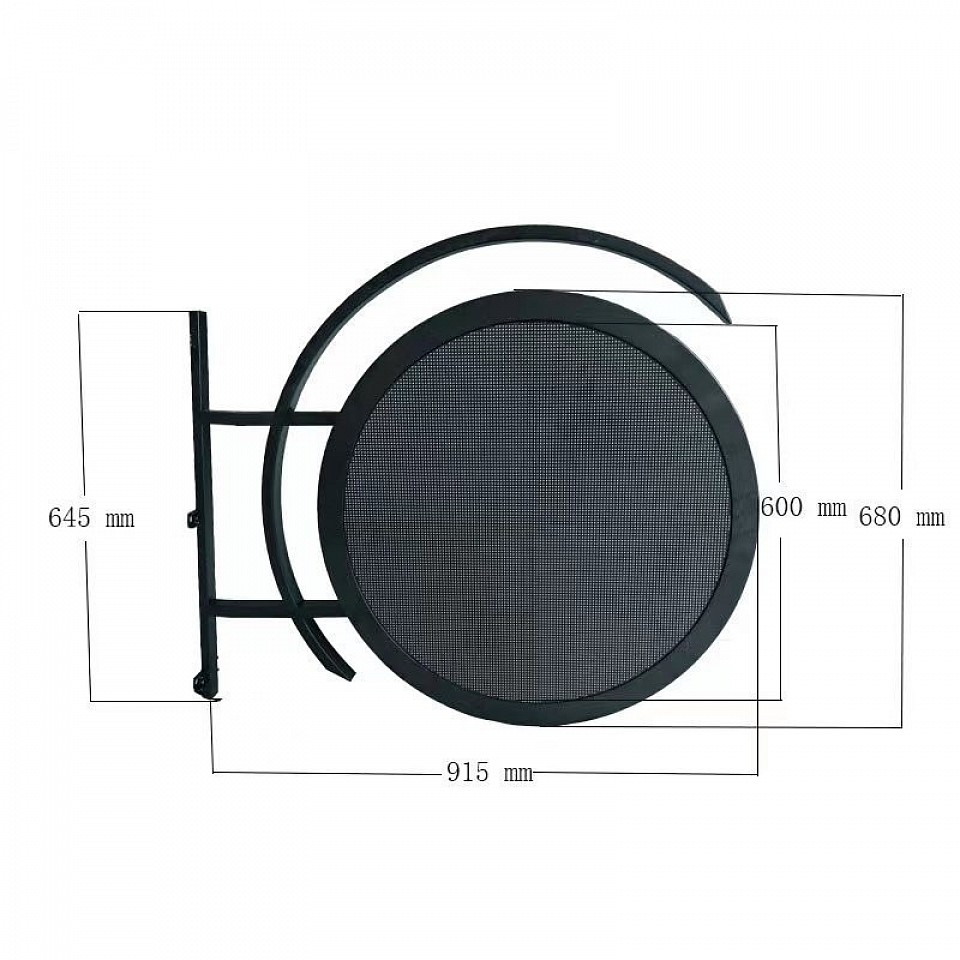

- Specifications
- Diameter of the screen : 650mm (25.5")
- Diameter of the visual area : 600mm (24")
- Screen Resolution: 128x128 pixels of each side
- Brightness max :4500 nits
- Brightness sensor adjust automatically Luminous during day and night : 200-4500
- Operating voltage : 110-220V AC
- Protection level : IP65
Instructions :
- Download Viplex Handy app
- Open WiFi settings in your smart phone
- Choose WiFi name AP5000....
- Return back to Viplex Handy app
- Click connect
- Choose single or double frame
- Upload media ( videos or pictures )
- Click send
- Once it reaches 100% upload you are done.
- Enjoy of your new attractive video sign!
Recommendations :Install Crop video app , you’ll need to crop video to square format to make video files looks correct on the display not squeezed , because we have resolution 128x128 pixels format 1:1
Outdoor round shape LED Advertisment video display
Outdoor Round LED Display
P2 round shape LED video module 300mm (11.81”) diamter
Round shape P2 LED video module for DIY applications
set incudes (optional):
Power supply
Receiving card
Main control card
For more details info contact us via contact us page
Round shape LED video module P4 10” (256mm) diamter
P4 Round shape mini LED module 10" (256mm) in diameter
This unique smallest shape round module can be widely use as advertisement display , video art design decor, animation logo rotator, and so on.
On the back of the module you can install:
- Asynchronous WiFi media player card, and play any type of video formats , pictures and gif files
- Receiving card ,connect to main sender card, and play videos and other files in real time
- Specifications:
Actual diameter : 256mm (10")
Actual resolution : 64x64 pixels
Refresh rate : 1920Hz
Gray level : 16 bit
Power consumption : 20W
Input voltage : 5VDC
Indoor use : IP20
