LED Flex Video Display’s Solutions
Flex LED Video Display - NX Series : P1.9, P2.6, P2.9, P3.9 new models, and oldest P3.2 ,P4, P6.7 No more available

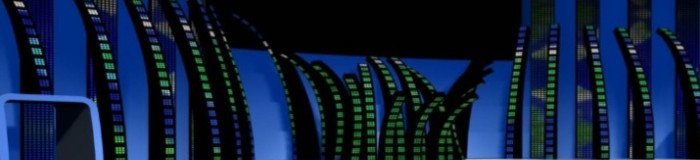

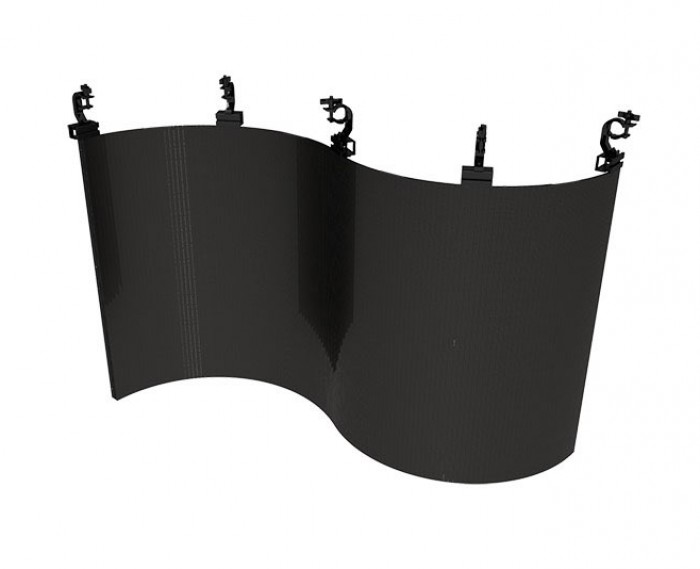

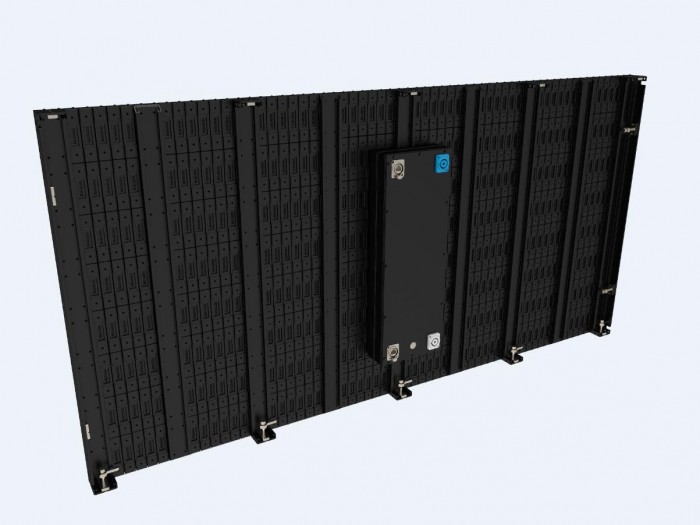

FLEX LED Video Display - NX Series
- Perfect solution for curve fix installation screens

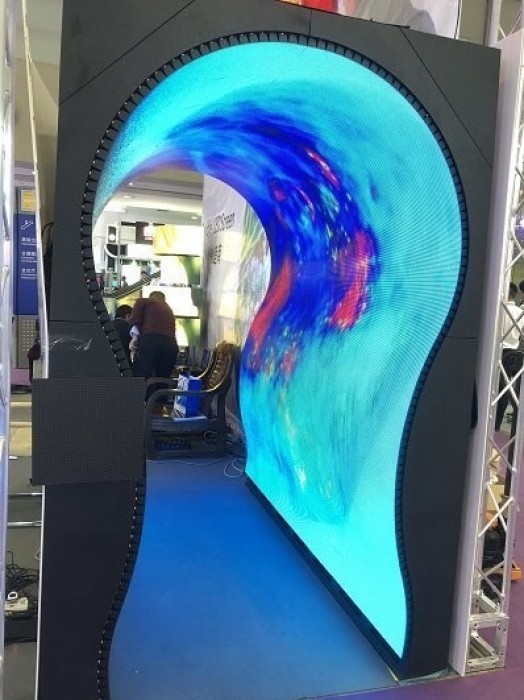

- Concave and convex shapes
- Available pitch: P1.9, P2.6, P2.9, P3.9

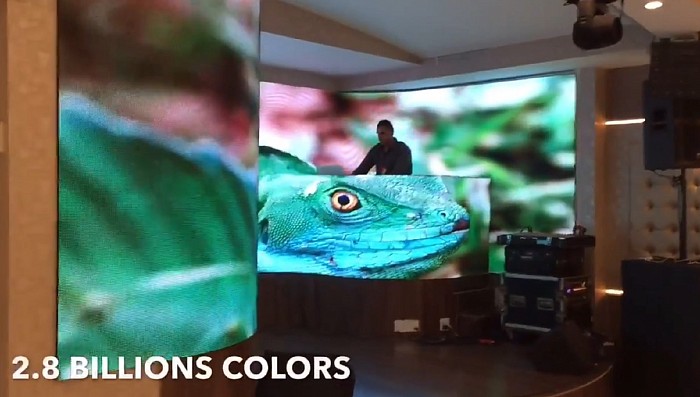

- High quality image 2.8 billions colors
- High refresh rate 1920-3840Hz
- Easy assemble plug and play
- Magnetic modules
- Indoor installation IP20
- DOWNLOAD SPEC CLICK HERE
Watch the video of LED flex screen installation below:

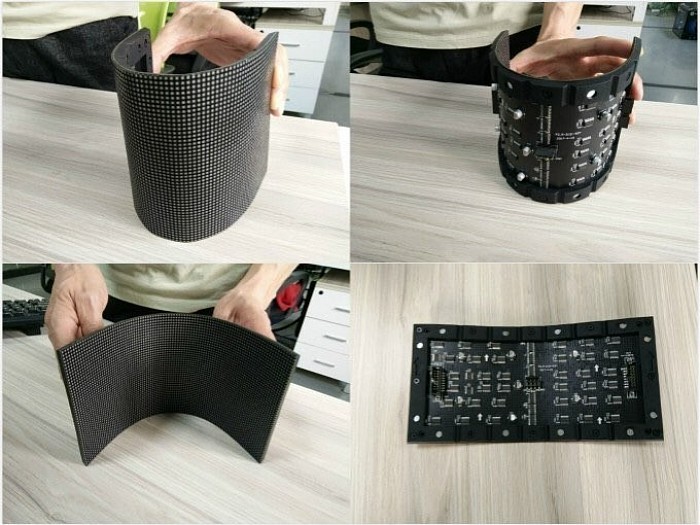

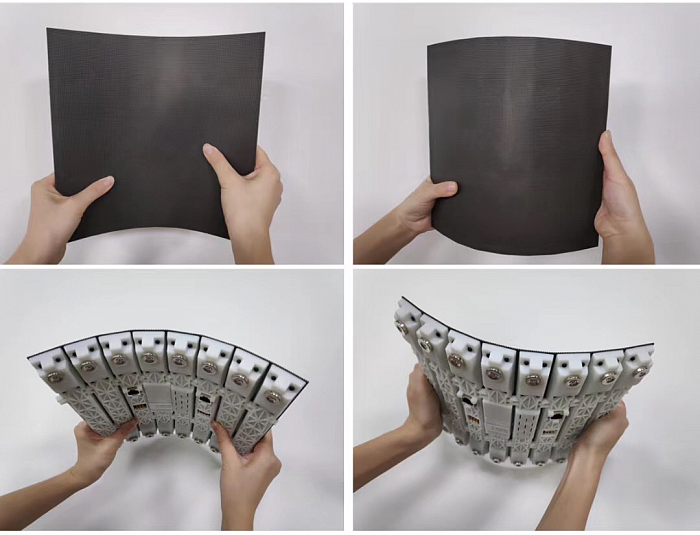

Fine Pitch High Precession LED Flex Video Modules
Fine pixel pitch flex LED video module 9.84”x9.84” (250x250mm) with build in receiving card.Pixel pitch are available P1.25 ,P1.5, P1.7, P1.9, p2.6 , p3.9
The design of that modules can achieve the following goals:
- Fine pixel pitch
- High seamless precision between modules
- Perfect flatness
- Integrated receiving cards one per module
- Quick installation
- One power supply can run 20-35 modules
- 3 years warranty

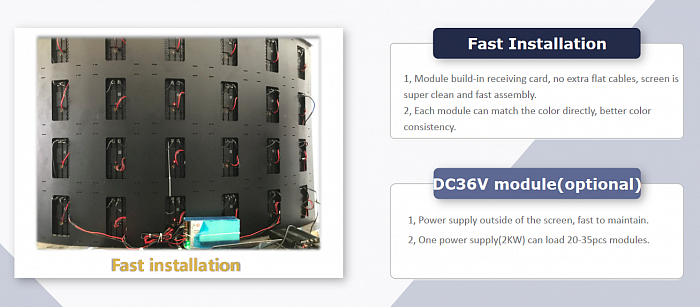

One power supply distribute 20-35 modules

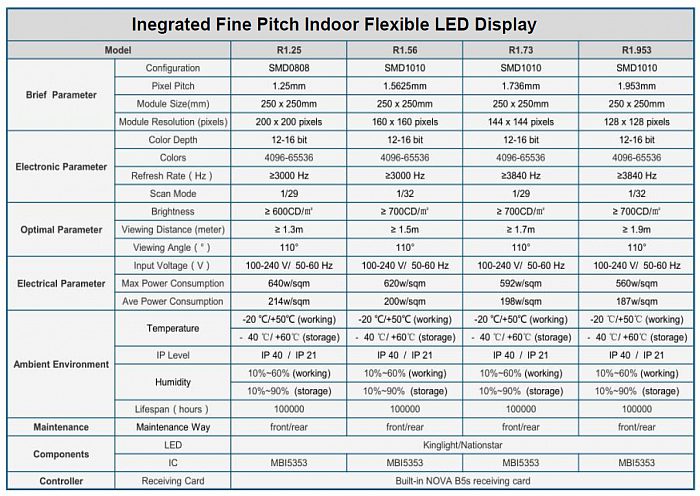

Tech spec of Flex LED modules P1.2, P1.5 , P1.7, P1.9

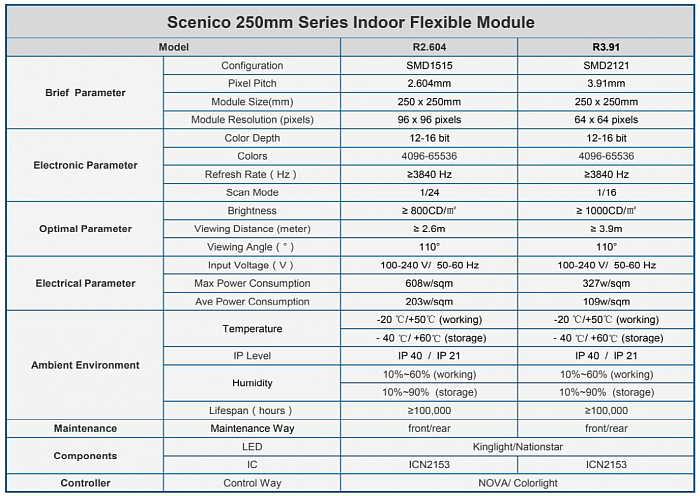

Spec for P2.6 and p3.9 Flex LED modules

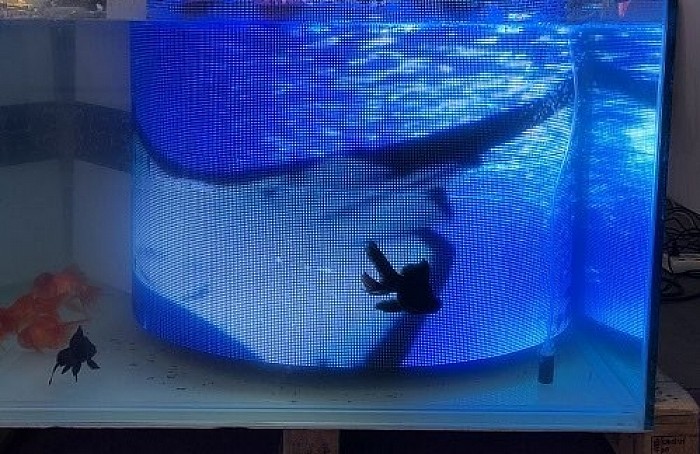

Underwater magnetic LED Flex video modules P3.8 304x304mm (1’x1’) Min diameter 15.28" (388mm), 4pcs modules

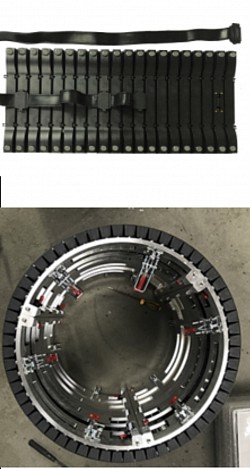

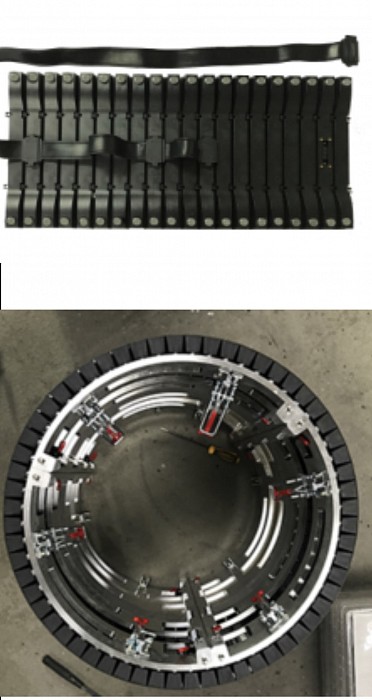

Magnetic flex module , available P1.9, P2.5,P3.2 , module size 250x250mm

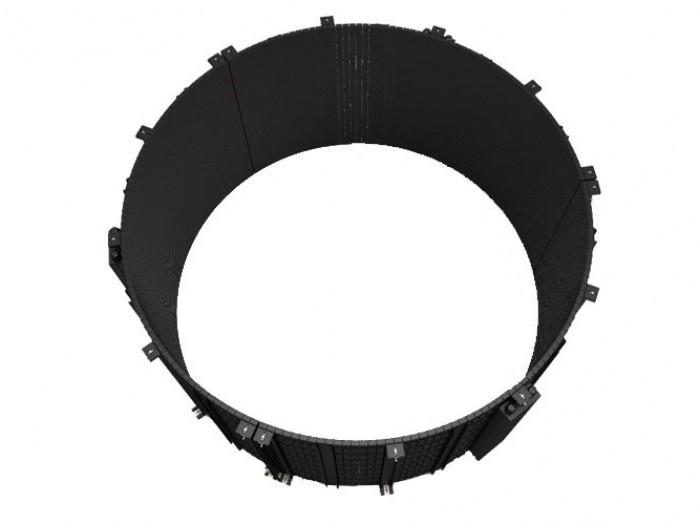

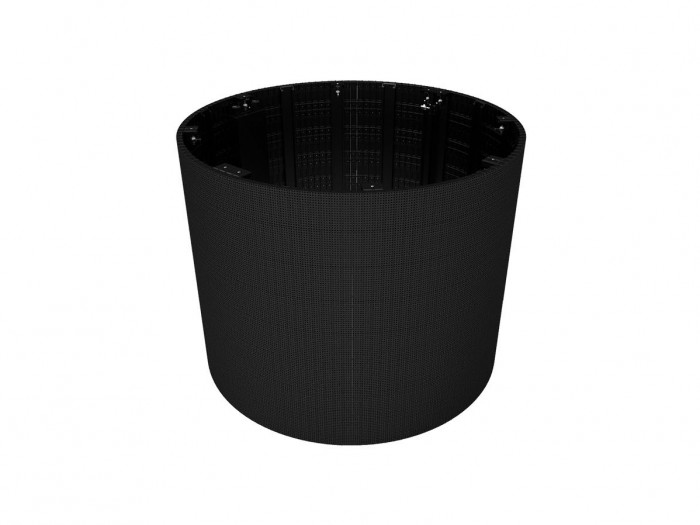

Min diameter of 9.84"x9.84" (250*250mm) modules can be 18.82" (478mm) (6pcs modules)

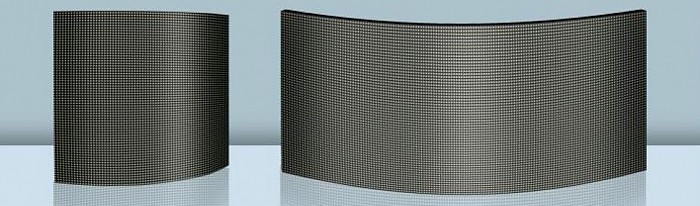

FLEX LED Modules

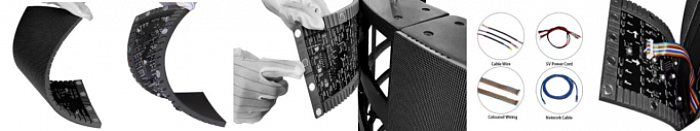

LED Flex Video Modules
Size 240x120mm : P1.875 , P2, P2.5 ( high banding radius)
Size 256:128mm : P2 ( high banding radius )
Size 320x160mm : P2.5 ( low banding radius and no rubber frame )
1) 240x120mm 1/24 scan ,
256x128mm and 320x160mm 1/32 scan.
LED type : SMD2121.
2) MBI5124 Driving IC ,1920Hz high refresh.
3) Flexible to design shapes of convex, concave or twisted surfaces (except 320x160mm module)
4) Large viewing angle up to 360 degree,totally meet any viewing requirement
5) Assembling on metal frame , front maintenance
6) Wide application : stores/restaurants /exhibition/shopping mall , creative design etc.
- P1.875 DOWNLOAD SPEC CLICK HERE
-
See videos of P2 flex module below
Flex LED modules , Size 240x120mm : :P1.875, P2 , P2.5 , Size 256x128mm : P2. Size 320x160mm : P2.5
Outdoor / indoor flex LED video display
Flex outdoor / indoor led display P4 , P6 are available
Flex Outdoor/ indoor LED Dispaly P4 , P6
Newest design of outdoor/ indoor flexible led display gives more opportunities to create wavy and curve shape LED video displays. Panel can be customized by width.
Available P4 and P6
Brightens 5500-6000 nits per Sq/m
IP65 rated
input Voltage : AC 110-240V
Foldable led video display
Foldable LED video display P4.46-16
Unique design of this model can solve many video project installation fast , easy and creative way as you planned .
NV-LVC-P6.25 is brightest type of high resolution displays of this type , and can be use as a semi-outdoor type for the window display , stage background display ,and as many any other curve shaped installations .
Using PWM driving IC ,screen can reach highest refresh rate , deep gray color depth up to 16bit .
Lightweight can be easy currying , assemble and reassemble by one person .
For rental purpose comes with road cases , for fixed installation wooden or carton boxes (optional)
Control system Linsn
Video controller or video processor are optional.
